MIG Series

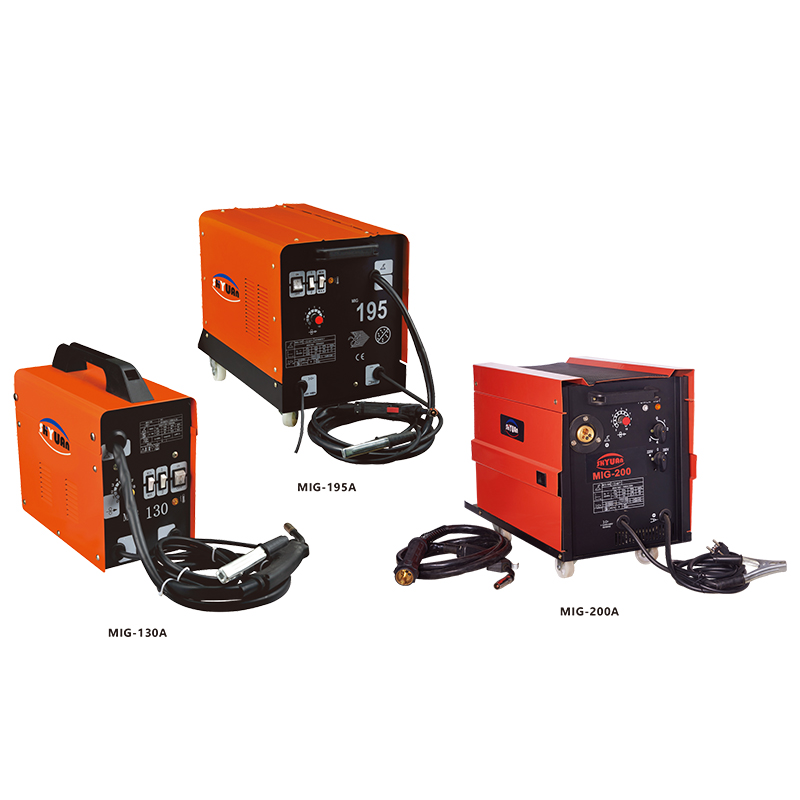

CO2 SHIELD WELDER

Instruction:

● Altenating current(AC),portable,fan-cooled,thermostatic protection,four pole current adjust

● Suit with flux(gasless)welding wire

● With complete accessory :MIG torch,earth clamp,welding cable,brush/hammer,protective mask,carton box.

Contact us

  • Product Details
  • leave a message

  • MODEL MIG-100A MIG-130A MAG/MIG-105A MAG/MIG-150A MAG/MIG-175A MAG/MIG-195A MAG/MIG-200A
    Rated input voltage(V) 230 230 230 230 230 230 230
    Rated input voltage(V) 110 110 110 110 110 110 110
    Current range(A)  35-100 50-130 40-105 40-150 40-175 40-195 60-200A
    Rated Duty Cycle(%) 15 15 15 15 15 15 15
    Input capacity(KVA)  %3 %5 %3.2 %5.3 %6.4 %7.6 %8
    Class of insulation  H H H H H H H
    Applied welding rod(mm) 0.6-0.9 0.6-0.9 0.6-0.8 0.6-1.0  0.6-1.0  0.6-1.0  0.6-1.0
    Weight(Kg)  14 16 24 34 36 36 40
    Dimension(cm) 41×21.5×37.5 41×21.5×37.5 47.5×24.5×41 57.5×36×49 57.5×36×49 57.5×36×49 57×36×49
