MIG/MMA-Y7/Y8 Series-Shenyuan Electro-machinery Incorporated Corporation

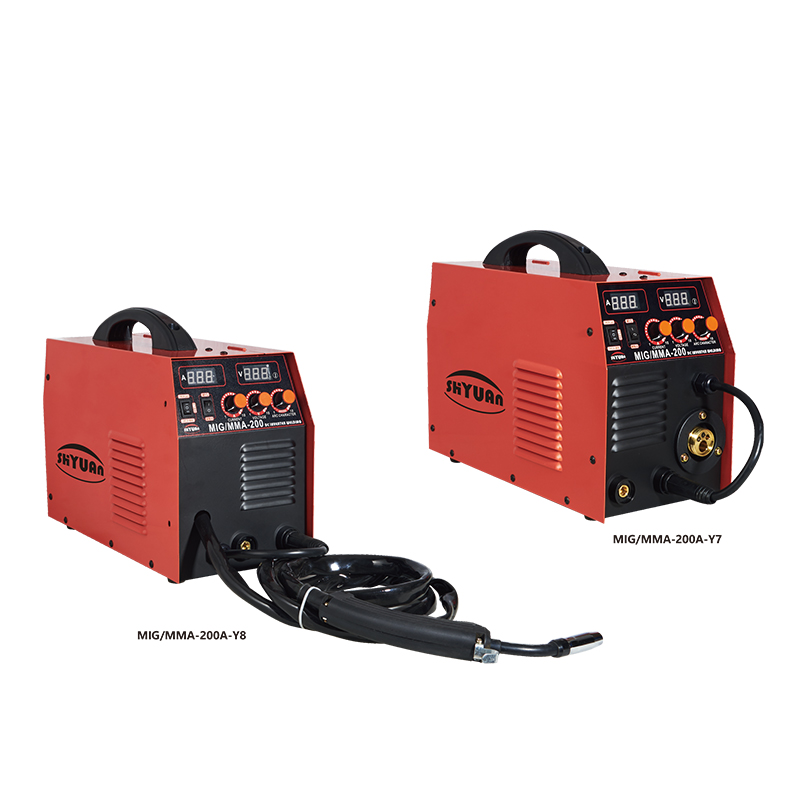

MIG/MMA-Y7/Y8 Series

INVERTER CO2 GAS PROTECTION WELDINGMACHINE(INTEGRATED)

Instruction:

● Apply high frequency inverter technology,feature optimized design,light effect and energy saving.

● With automatic arc lenght compensating function,stable electric arc, less splashing, electric archas high penetration force.

● Deep bath, beautiful appearance.

● With excellent dynamic response.

● Continuously and persistently weld workpiece,high efficiency with high current.

Contact us

Product Details
leave a message

MODEL	MIG/MMA-160A-Y7 MIG/MMA-160A-Y8	MIG/MMA-180A-Y7 MIG/MMA-180A-Y8	MIG/MMA-200A-Y7 MIG/MMA-200A-Y8	MIG/MMA-250A-Y7 MIG/MMA-250A-Y8
Rated input voltage(V)	1~230	1~230	1~230	1~230
Rated input voltage(V)	1~110	1~110	1~110	1~110
No-load voltage(V)	56	56	56	60
Current range(A)	40-160	40-180	40-200	40-250
Rated duty(%)	60%	60%	60%	60%
Input capacity(KVA)	4.4	5.2	6	8.3
Class of insulation	F	F	F	F
Aplied welding rod(mm)	0.6-0.8	0.6-0.8	0.6-1.0	0.6-1.0
Weight(Kg)	11	11	11.5	13
Dimension(cm) 1PC	45×30×20	45×30×20	45×30×20	45×30×20
